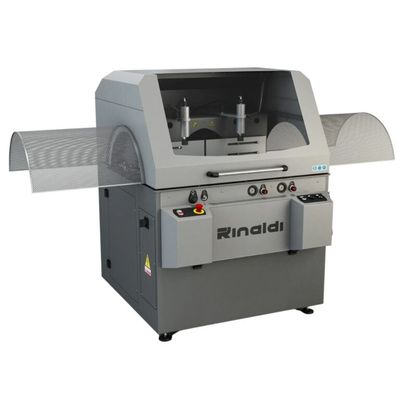

TMA 60
The TMA 60 from Rinaldi brings industrial-grade cutting power to aluminum, PVC, fabrication shops. Built around a large-capacity up cut blade and a rigid ground steel work surface, this machine delivers clean, precise, high-volume cuts with excellent safety and durability — ideal for production environments and fabrication floors.
Designed for Productivity and Safety
› Upward-moving blade with semiautomatic feed for consistent cutting cycles.
› Adjustable vertical fence increases cutting capacity for a variety of profiles.
› Angle cutting capability up to ±15°, with quick-set stops at -45°, 0°, +45° for rapid setup.
› Full cutting area guard with lateral safety tunnels protects operators in busy shop environments.
Built for Precision & Reliability
› Pneumatic vertical and horizontal clamps with low-pressure device maintain secure hold of material during cutting.
› Pneumatic mist blade lubrication system extends blade life and reduces maintenance.
› Oleopneumatic feed speed adjustment for consistent cutting performance.
› Rear provision for chip extraction and roller conveyor connections — ready to integrate into your workflow.
Performance Specs
- Blade Diameter: 600 mm (≈ 23.6″)
- Motor Power: 5.5 kW (~7.4 HP)
- Blade Speed: 2850 RPM
- Adjustable Blade Tilt: -15° to +15°
- Weight: Approx. 500 kg (~1100 lbs)
- Power: 230/460 V three-phase (60 Hz)
Why U.S. Fabricators Choose the TMA 60A
The TMA 60A series gives precision cutting performance with dependable uptime and safety-focused operation. Its robust construction and flexibility to handle angled cuts make it ideal for aluminum frame shops, industrial component cutting, and high-volume production settings.
