TDF 55P

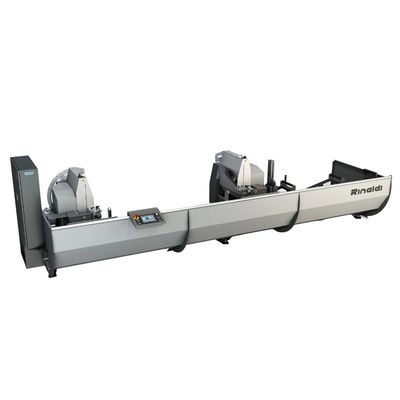

The Rinaldi TDF-55P is a high-performance, DUAL head production-ready upcut cutting machine engineered for cutting aluminum profiles, PVC framing.  Dual heads are NC controlled. Built for industrial fabrication environments, this saw combines precision cutting, robust construction, and operator-focused safety features to boost productivity and part quality in busy shops.

The TDF-55P is designed to make precise, clean, and repeatable cuts on extruded profiles. Its upward-cut blade action ensures smooth cutting with minimal burr, while the pneumatic feed system delivers consistent material advancement and efficient cycle times. The machine accommodates a wide range of profile sizes and angles, making it ideal for window and door shops, storefront fabricators, curtain wall manufacturers, and general metalworking facilities.

Key Functional Highlights

• Upward blade action delivers high-quality cuts with excellent surface finish.

• Pneumatic feed control offers accurate, controlled material advancement for consistent results.

• Adjustable vertical fence helps align and support profiles during cutting.

• Pneumatic clamps hold material securely in place to maintain precision and reduce vibration.

• Integrated mist lubrication helps prolong blade life and minimize maintenance.


The TDF-55P comes fully equipped with features that enhance reliability, operator safety, and ease of use:

Pneumatic Feed System — Smooth, consistent movement of material through the cutting cycle.
Vertical and Horizontal Pneumatic Clamps — Secure holding of profiles to improve cut precision.
Adjustable Vertical Fence — Easy setup for different profile sizes and cut positions.
Upward-Cut Saw Blade with Protective Guard — Maximizes cut quality and operator safety.
Fully Enclosed Safety Tunnel Guarding — Protects the operator and complies with safety standards.
Mist Blade Lubrication System — Keeps the blade cool and extends blade life.
Control Panel with Start/Stop and Feed Adjustment — Intuitive operation for trained personnel.
Provision for Chip Extraction & Rollers — Ready for connection to extraction and material handling systems.

SpecificationTDF-55PBlade Diameter550 mm (~21.7")

Cutting Action Upcut

Feed Type Pneumatic Feed System

Clamping Pneumatic Vertical & Horizontal

Lubrication Mist Blade Lubrication System

Fence Type Adjustable Vertical Fence

Safety Guards Fully Enclosed Tunnel Guards

Material Capability Aluminum, PVC, Light Steel

Control Start/Stop & Pneumatic Feed Adjustment

Chip Extraction Ready Yes

Rollers / Conveyor Interface Yes

Frame Construction Heavy Welded Steel

Power Supply 460 V or 230 V Three-Phase

Weight ~3200 lbs
