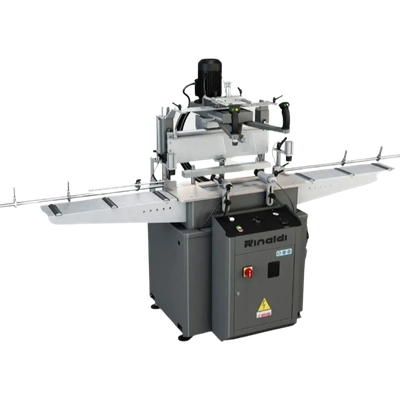

Pan 40i
The PAN 40i is a heavy-duty copy router designed to handle routing, milling, drilling, and shaping of aluminum, PVC, and up to 3mm steel, with high accuracy. Engineered for industrial fabrication environments, this machine delivers consistent, repeatable results whether you’re producing window frames, door profiles, storefront systems, or custom extrusions.
Machine Function & Application
The PAN-40 series is built to perform a wide range of profile machining operations, including:
- Copy routing and pattern-based machining
- Drilling and hole making
- Milling and shaping
- Profiling and custom features
Engineers and operators rely on its mechanical precision and ease of setup to produce parts with consistent geometry and finish. Whether you’re machining simple cuts or intricate profiles, this router delivers dependable performance and quality.
Standard Features & Equipment
The PAN-40 comes equipped with features that enhance productivity, reliability, and ease of use:
Heavy-Duty Welded Frame — Built for rigidity and long service life in industrial environments.
Powered Copy Routing Head — Delivers accurate, repeatable routing guided by templates or fixtures.
Adjustable Work Support Table — Simplifies setup for various profile sizes and maintains stability.
Precision Guide System — Ensures smooth, vibration-free motion during machining.
Operator Controls — Intuitive start/stop and feed controls designed for trained machine operators.
Safety Guards & Shields — Provides protection from chips and moving parts during operation.
Easy Service Access — Designed for quick maintenance and adjustments.
The PAN-40i version adds advanced features for automated production lines or higher-volume machining needs, such as:
- Motorized feed adjustments
- Enhanced control options
- Integrated stops and positioning aids
- Higher-speed routing spindles
Technical Specifications
Power 230/460 3 phase 3500-12000
Spindle Speeds 3300-12000 rpm
X-Y-Z Axis stroke 400x150x200mm
Frame Construction Heavy Welded Steel
Routing Head Powered Copy Routing Spindle
Work Support Adjustable Table with Rollers
Guide System Precision Linear Guides
Safety Features Guards, Shields
Maintenance Access Tool-Free Panels
